Compact

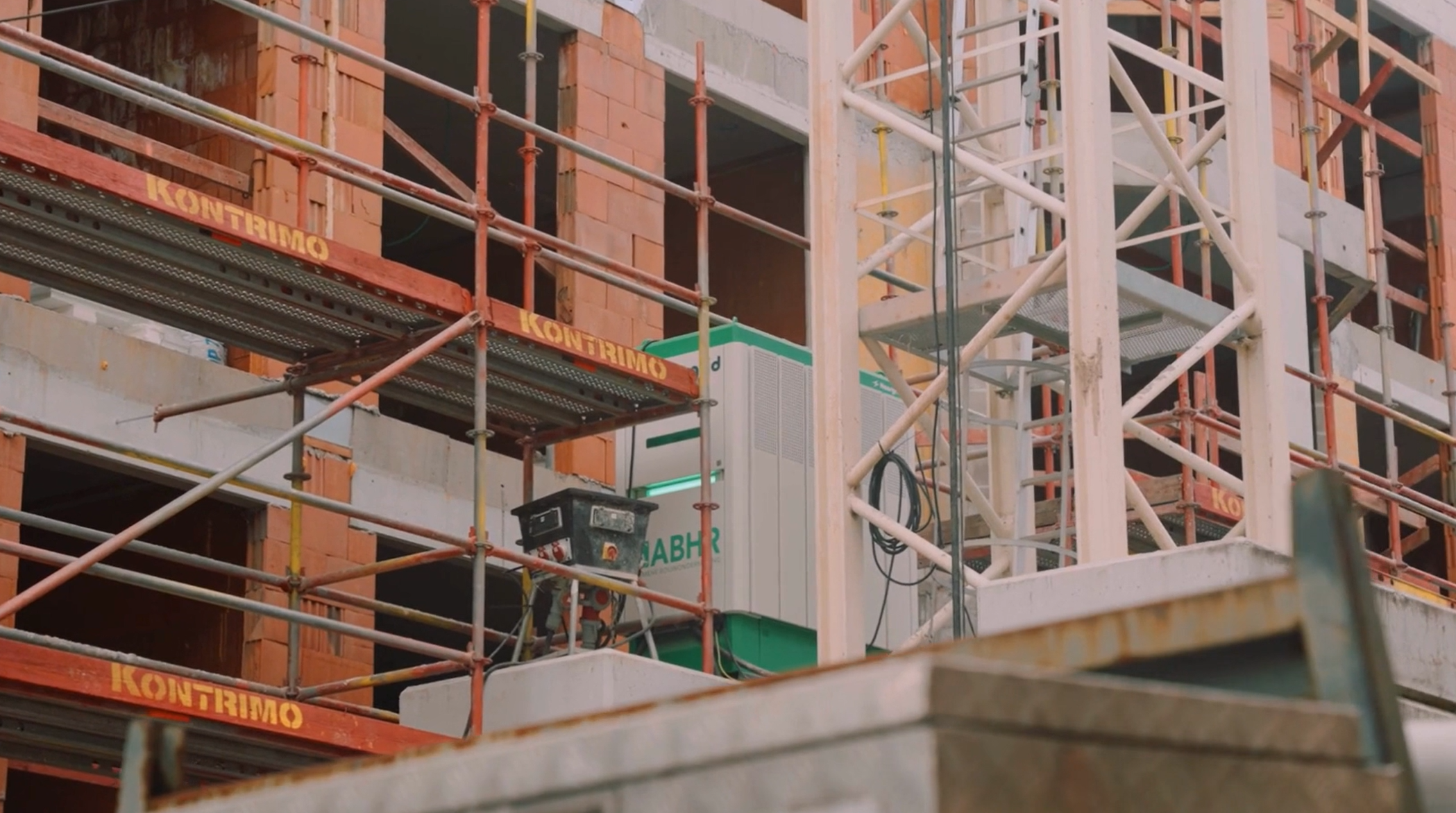

Small but powerful, that's the Neargrid Compact! This battery system provides construction sites with a variety of setups with reliable power, with and without construction cranes.
The Neargrid Compact provides a solution to deliver peak power to construction sites with self-erecting cranes and to optimally power construction sites without grid power in combination with a conventional power group.
Peak Shaving
The Neargrid Compact can supply three-phase power to self-erecting cranes even from a single-phase grid connection
Cycling
In a hybrid setup with a conventional power group, consumption and running hours on the power group can be minimized.
Plug & Play
Our technology is fully adapted to the construction process. Commissioning on site is a snap and requires no specific knowledge.
Specifications
Application
compact
Cycling, storage renewables, peak shaving
Boost
Peak shaving, cycling, renewable energy storage
force
Peak shaving, cycling, renewable energy storage
Peak shaving
1 tower crane
< 8 ton
3 tower cranes
-
Power supply to the construction site
Continuous power
45 kVA
Peak capacity - maximum 15 sec
67 kVA
voltage
3f - 400 V + N + PE
Electrical power supply tower cranes and construction site
1 x 63 A CEE or 1 x 125 A CEE
- type B differential
1 x 63 A CEE
1 x 32 A CEE
Energy source
input voltage
3f - 400 V + N + PE
1f - 230 V + PE
input current
16 - 100 A
Solar
Power
10 kWp - DC
Battery
Type
Lithium-Ion (LFP)
Installed capacity
60 kWh
Mechanical
dimensions (L x W x h)
0.8 m x 1.3 m x 1.8 m
weight
1.5 tons
Additional
power group
Active diesel control (ON/OFF)
connectivity
4G connected to Neargrid Portal
